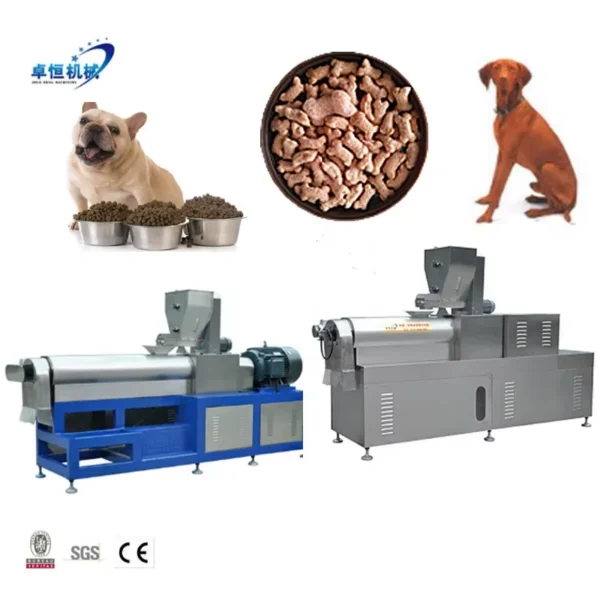

Automatic Pet Dog food machine Production Line can produce all kinds of pet food, including dog, cat, fox, bird and so on. automatic dry extruder pet food machine for dog uses twin-screw extruder, the whole work flow for Automatic Pet Dog food machine Production Line can be controlled exactly by parameter. Different raw material and nutrient elements can be added together according to advanced formula, so the final products are easy to digest.
If you have a need for custom industrial food processing equipment, please check out all of our food processing machines.
Versatile Production – Capable of producing diverse pet food formulas with customized characteristics.
Scalable Solutions – Available in both big-capacity and regular extruder units to suit different production needs.
High Efficiency & Space-Saving – The vertical structure optimizes workspace while maintaining high output.
Multifunctional Processing – Integrates blending, hoisting, conditioning, extruding, and shaping in a single unit.
Advanced Control System – User-friendly interface with all functions integrated into one control panel.
Big Capacity Extruder Unit: 1000kg/h to 3000kg/h
Regular Extruder Unit: 150kg/h to 500kg/h
With double-screw extrusion technology, our system ensures consistent quality, improved digestibility, and enhanced nutritional value in pet food production. Whether for large-scale industrial operations or smaller production lines, our pet food processing machines offer reliable performance, flexibility, and efficiency.
Multi roller mixing, mixing evenly Twin-screw extrusion bulking, bulking degree is higher Comprehensive evenly heats up with teflon mesh Hot air drying, large capacity
|
Model |
Installed Power(kw) |
Power Consumption (kw) |
Capacity(kg/h) |
Dimension(m) |
|
ZH65 |
110kw |
70kw |
120-150 |
25*3*3 |
|
ZH70 |
138kw |
95kw |
200-250 |
28*3*3 |
|
ZH85 |
240kw |
160kw |
500 |
30*3*3 |
|
ZH95 |
330kw |
230kw |
1000-1200 |
50*3*3 |
|
ZH115 |
400kw |
280kw |
2000 |
60*6*15 |
|
ZH135 |
500kw |
350kw |
3000 |
60*6*20 |
Motor: 3kw, 4kw, 7.5kw etc.
Capacity: 60kg/time, 100kg/time, 300kg/time, 500kg/time etc.
Material: stainless steel, carbon steel
Zhuoheng’s Blend Mixer is a high standard two-way ribbon mixing machine. It includes material tank, screw mixing paddles and drive parts
Motor: 55kw, 75kw etc.
Capacity: 500kg/h, 1000kg/h etc.
Material: Screw materials 38CrMoAl
stainless steel, carbon steel
Pet feed extrudr unit consist of bucket elevator, Storage Silo, material conveyor, conditioner, feeder, extruder, electric controller and operation platform. The extruder includes drive system, extrusion system, cutting system, heating system, lubricating system and extraction steam system.
Type: 5 layers 5 meters, 5 layers 7 meters, 5 layers 12meters, 7 layers 12 meters.
Heating source: electric, gas, steam, oil, diesel.
Material: stainless steel, carbon steel
1. Heat With Infrared Ray Heating Tube, Raise And Lower Down Temperature Quickly, Small Heat Inertia And High Heat Efficiency.
2. Adjustable Transit Speed Of Net Belt With Accurate Temperature Control Device. Sliding Board Bottom Of Dryer For Easy Cleaning.
Hot Wind Cycle Device Makes Heating Energy Equally In The Dryer
3. Double-Roller Chain And Chain Drive Make Stable And Smooth Running
Motor: 0.75kw, 1.1kw etc.
Capacity: 100kg-1000kg/h
Material: stainless steel
1. It’s consist of hoistor, drum machine, flavoring machine and oil sprayer.
2. The oil sprayer sprinkle the atomized oil to the products in the drum.By continuous rolling material, the drum will make oil and seasoner evenly adhere to the surface of products. To prevent feed leakage, the hoister is used wavy baffle belt.
3. The oil sprayer can bear high temperature and pressure. Safe and durable. Mixing atomized oil and products evenly in the flavoring drum.
4. Inverter to adjust the speed of spices. Easy to control.
5. The drum drive run stably .No slipping no jumping.
The whole unit is reasonable allocation, simple operation; All materials mixing well, excellent quality.
Type: automatic, semi-automatic.
Weight range: 1-5kg/bag, 5-25kg/bag, 25-50kg/bag
Material: stainless steel, carbon steel
1.The serious of electronic scale is net type,it using today’s latest technology,suitable for packing irregular materials.such as:fish dog cat food.melon seeds.peanuts.lotus seed.walnut etc.
2.Feeding system adopts a bariety of ways:double door type vibration feeding,feeding size and blanking instantaneous stop.
Gurantee the packaging accuracy and speed effectively.
Contact us Now
Request detailed information
Our factory is equipped with advanced production equipment and rich technical experience. The strong reputation of our brand is built on the collective efforts of every team member. With an experienced technical team and a well-established management process, we strictly adhere to quality management standards to ensure that every product meets international quality requirements. We are committed to providing our customers with stable, reliable, and high-quality products, always upholding excellent service to meet the needs of every client.
FIRST-CLASS SERVICE AND FIRST-CLASS QUALITY
We are a professional manufacturer of food & feed extrusion machine
You can inquiry to us directly.We will send the quotation to you as soon as possible.My Wechat/Skype/Whatsapp:+0086 15820016777
.
T/T 30% as down payment, 70% by T/T before delivery.
We can provide basic formula for produce the food etc. And help customer to produce new products according to customer’s formula.
The production line can be put in straight line and also can change the direction according to
to your factory size.
Send engineers for installation, trial running and training workers at customer’s site.Handling the problems occurred during use.
Supply spare and wearing parts on discount.Help customers to solve any other problems.
